Rail Fence Quilt Pattern Ideas: 15 Easy Designs for Beginner Quilters

If you’re looking for your first quilt, the Rail Fence Quilt Pattern is where most quilters are told to start – and for good reason. The block couldn’t be simpler: three or four fabric strips sewn side by side into a square, and that’s the whole thing. There are no triangles, no points to match, no curves, and nothing cut on the bias.

What makes it look far more complicated than it is happens at the layout stage, when you rotate the blocks. Turn one square so its strips run horizontally, and the next so they run vertically, and the strips appear to interlock and weave over and under one another, like the stacked rails of an old zigzag fence – which is exactly where the name comes from.

Rail Fence Quilt Pattern Ideas

This collection of Rail Fence Quilt Pattern Ideas gathers fifteen ways to take that one simple block somewhere different. You’ll find the classic three-strip version for an absolute first quilt and a bolder four-strip variation, then four layout arrangements that transform the same block completely – basket weave, straight furrows, zigzag, and an on-point diagonal setting. Color treatments suit every taste, from crisp two-color and flowing ombre to scrappy, rainbow, and calm farmhouse neutrals, plus fabric-led options like a fast jelly roll version and a cozy flannel one. And there are two smaller projects – a table runner and a baby quilt – for when you want something finished in a weekend. Same block, fifteen genuinely different quilts.

Why Make a Rail Fence Quilt

Rail fence quilts are worth making because they deliver an impressive result with almost no risk. Every seam is straight, every block is identical, and nothing is cut on the bias, so there’s no stretching, no distortion, and no points that can end up chopped off. That forgiveness is why it’s the block most often recommended for a first quilt – a slightly wobbly seam simply doesn’t show. What sets it apart from other beginner patterns is that the design isn’t in the piecing at all; it’s in the arrangement.

Because the woven effect comes from rotating identical blocks, one set of blocks can produce a basket weave, diagonal furrows, or a zigzag depending purely on how you lay them out – which means you can decide what the quilt looks like after all the sewing is done. It’s also exceptionally fast. Strip-piecing means you sew long seams and cut multiple blocks at once rather than assembling small pieces, so a throw comes together in a weekend.

Tips for Choosing Fabrics and Colors

The woven illusion depends entirely on value contrast – the difference between light and dark – so that’s the thing to get right. Within each block, use strips that are clearly different from one another; three or four fabrics all of a similar depth will blur into a muddy square no matter how neatly you sew. The most reliable approach is to include one clearly light strip in every block, which gives the eye something to follow as the weave travels across the quilt. Beyond that, keep the same color-and-value sequence in every block – the actual prints can vary, but if position one is always dark and position two always light, the pattern will read cleanly.

Precuts are a natural fit: a jelly roll’s 2½-inch strips need no cutting, and a 2½-inch strip set finishes at 6 inches for a three-strip block or 8 inches for a four-strip one. For fabric, quilting cotton is easiest to handle, while flannel gives a warmer, heavier quilt but shrinks noticeably more and should be prewashed consistently. Plan light quilting rather than dense quilting, so the finished quilt stays soft and drapes well.

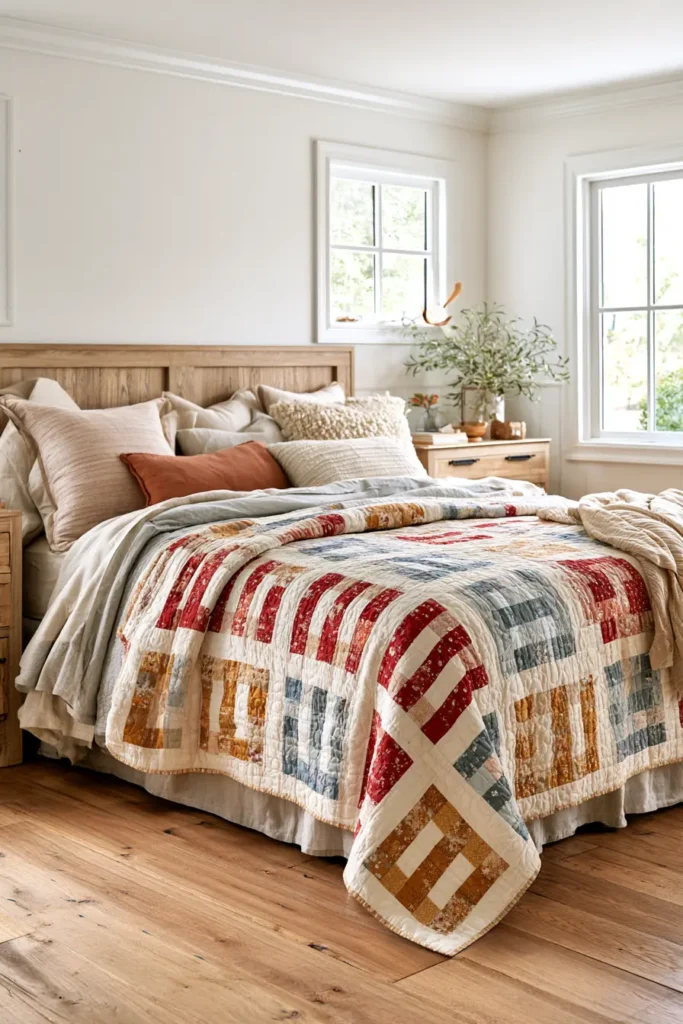

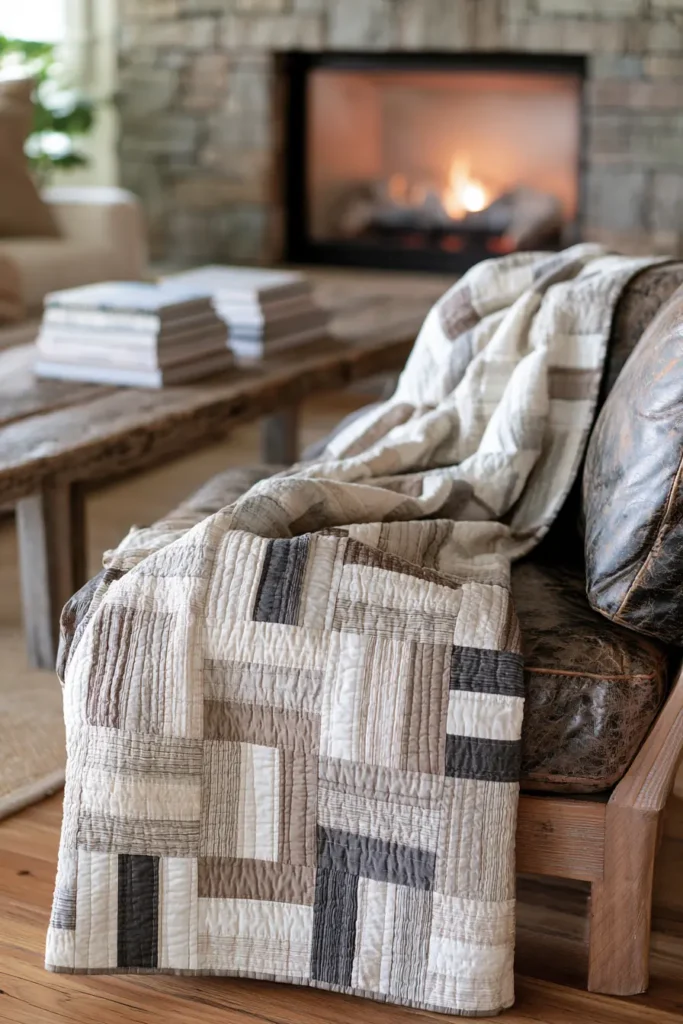

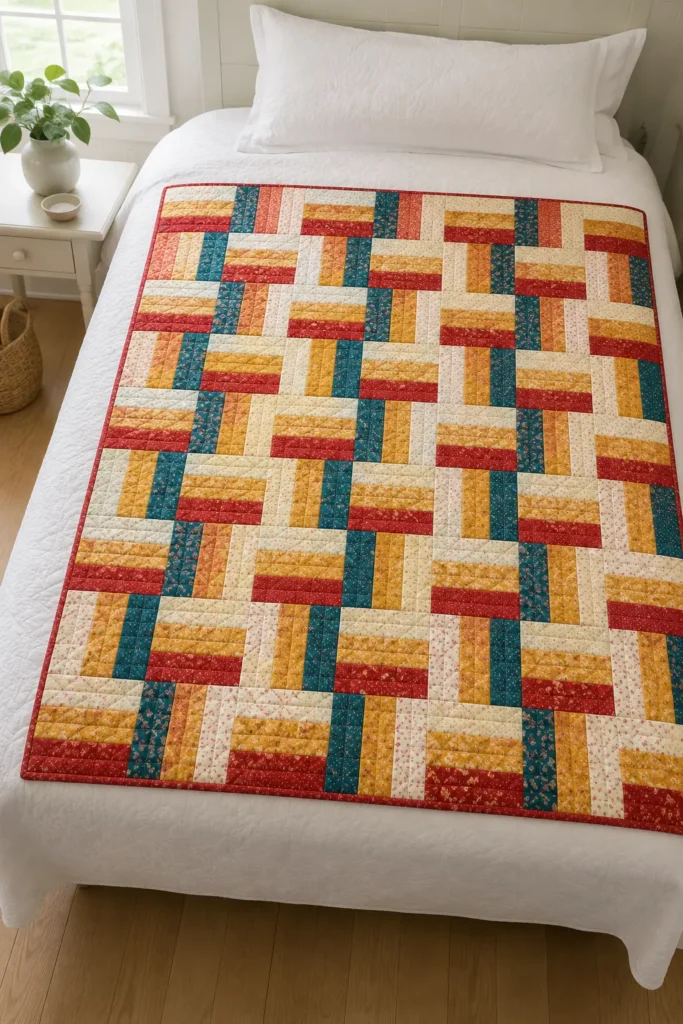

1. Classic Three-Strip Rail Fence Quilt for Absolute Beginners

This is the quilt to make first. Three strips of fabric sewn side by side, cut into squares, and turned – that’s genuinely the whole pattern. There are no triangles, no points to match, no curves, and not a single bias edge to stretch out of shape. And yet the finished quilt has an interlocking woven texture that looks like it took far more skill than it did, because the design doesn’t come from the piecing at all. It comes from rotating identical blocks.

In vibrant colors – cherry red, teal, mustard, and cream, or any combination you love – a classic three-strip rail fence gives a beginner a proper, satisfying result on the very first attempt. That’s exactly why it’s been the block handed to new quilters for well over a century.

A Little History: The Zigzag Fence

The block is named after the split-rail fence of early rural America – and specifically the “worm fence” or “snake fence,” where split wooden rails were stacked in an interlocking zigzag rather than being nailed to posts. It was a clever solution to a practical problem: settlers had abundant timber but very little iron, so a fence that needed no nails at all and could be taken apart and moved when the field boundary changed was worth more than a neater one.

Look at a rail fence quilt, and you can see exactly that structure – rails locking together at right angles, holding without fastening. It sits alongside Log Cabin, Churn Dash, and Bear’s Paw in the family of blocks named for the everyday world of the people who first stitched them.

Design Inspirations – Digitally Modified Images. Texture and color may vary from the actual product.

How the Block Works

The whole quilt is built from one block, repeated:

Three strips cut 2½ inches wide, sewn together along their long edges
Joined with ¼-inch seams, that set measures exactly 6½ inches wide
Cut across the set at 6½-inch intervals. Each section is a 6½-inch unfinished block, which finishes at 6 inches once it’s sewn into the quilt – no trimming needed

Each block finishes at 6 inches in the quilt. Every block shares the same construction, value order, and dimensions – though the individual fabrics can vary from block to block.

Where the Weave Comes From

This is the part worth understanding before you start, because it’s the entire design.

Lay two blocks side by side. Turn one so its strips run horizontally and the other so they run vertically. Where they meet, the strips appear to pass over and under one another. Repeat that alternation across a whole quilt – like a checkerboard, but of directions rather than colors – and the blocks lock into a woven basket-weave texture.

Nothing else creates it. Same block construction, same value order, same seams – just rotation. The individual fabrics can vary from block to block without affecting it.

The One Rule That Makes It Work

The weave only reads if the strips within each block are clearly different from one another in value – that is, in lightness and darkness, not just color.

Three medium-toned fabrics will blur into a muddy square no matter how neatly you sew. The reliable fix: include one clearly light strip in every block. That light rail is what the eye follows as the weave travels across the quilt.

And keep the same sequence in every strip set. The prints can vary – an assorted bundle won’t contain eleven identical strips of anything – but if position one is always dark, position two always light, and position three always medium, the pattern will read cleanly across all 63 blocks.

Finished Size

Block: 6 inches finished (6½ inches unfinished)
Layout: 7 blocks across × 9 blocks down = 63 blocks
Quilt top: 42½ × 54½ inches unfinished
Finished quilt: about 42 × 54 inches after binding and before washing – a generous lap quilt or throw. Expect slight shrinkage in the first wash
Skill level: true beginner
Core techniques: strip sets, straight cutting, block rotation, binding

Materials Needed

1 jelly roll (about 40 strips, 2½ inches × width of fabric) – you’ll use 33 strips for the blocks and 6 for the binding, so a 40-strip bundle covers the whole quilt with one to spare. Count your strips before starting, though – bundle sizes vary between manufacturers. Alternatively, cut 39 strips at 2½ inches from about 2¾ yards of assorted fabric
Backing: 3½ yards of standard-width fabric left unwashed (3¾ yards if you plan to prewash it), cut into two equal lengths and seamed along their long edges. Two 63-inch lengths joined this way give a panel about 63 × 81 inches, comfortably more than the 48 × 60 inches needed; or 1¾ yards of 108-inch wide backing
Batting: at least 48 × 60 inches. That gives about 2¾ inches of spare backing and batting beyond every edge of the top, which is fine for careful quilting on a domestic machine. If you’re sending the quilt to a longarm quilter, ask what allowance they need first – many want at least 4 inches per side
Binding: 6 strips at 2½ inches
Thread: neutral cotton
Rotary cutter, cutting mat, quilting ruler, pins or clips, iron

Beginner tip: don’t prewash the jelly roll strips. Precut strips have pinked edges, and washing 2½-inch strips causes fraying and distortion that ruins their accuracy. If you’re cutting your own strips from yardage, leave that unwashed too, so everything in the quilt top shrinks together in the first wash. You can prewash the backing if you prefer.

Choosing Your Colors

Vibrant palettes suit this block especially well, because the woven structure gives busy colors somewhere to sit:

Bright and cheerful: cherry red, teal, and cream
Warm: rust, mustard, and oatmeal
Bold modern: navy, coral, and white
Fresh: grass green, sky blue, and pale yellow
Scrappy but ordered: many different fabrics, but always dark-light-medium in that order

Whatever you choose, remember the rule above: one clearly light strip per block, and the same value order every time. Those two habits do more for the finished quilt than any amount of careful sewing.

Cutting Measurements

Strip sets: 11 sets, each made from 3 strips sewn along their long edges. Each set measures 6½ inches wide × about 40 inches long once selvages are removed
Blocks: cut 6½-inch squares across each set – 6 per set, giving 66 blocks. You need 63, leaving three spares
Backing panel: at least 48 × 60 inches
Batting: 48 × 60 inches
Binding: six strips, 2½ inches × width of fabric

Step-by-Step Guide

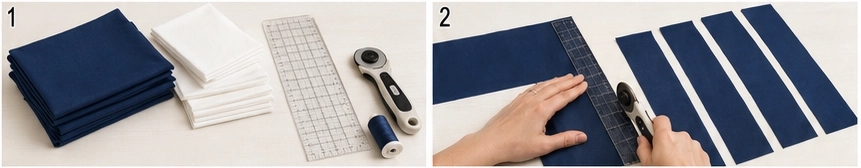

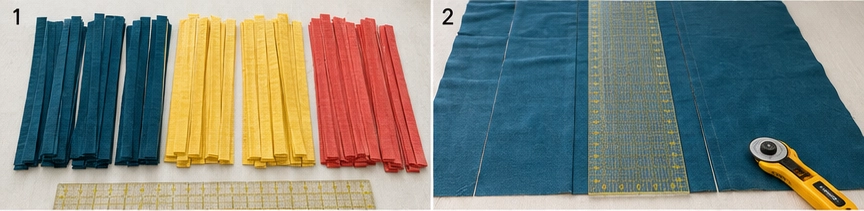

Step 1 – Prepare your strips. Leave the jelly roll strips unwashed. Set aside 6 strips for binding, then take 33 strips for the blocks and remove any selvage from their ends. If you decided to prewash your backing, wash and dry it now, before you measure and cut it.

Step 2 – Decide your value sequence. Choose the three-position order you’ll repeat in every set – for example, dark, light, medium. Write it down. Repeating this sequence keeps the rails visually consistent from block to block; the rotation later on is what creates the woven layout.

Step 3 – Sort the strips into eleven groups of three. Divide all 33 strips into eleven piles, each following your chosen sequence. Do this before sewing anything: it’s how you discover now that you’re two light strips short, rather than after eight sets are done.

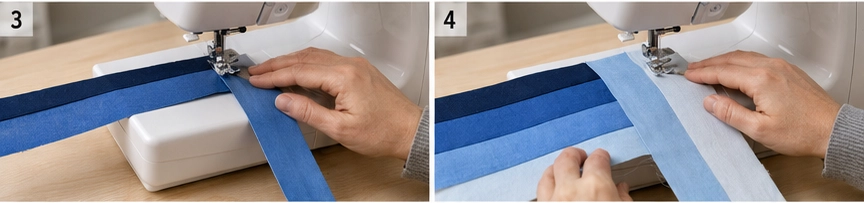

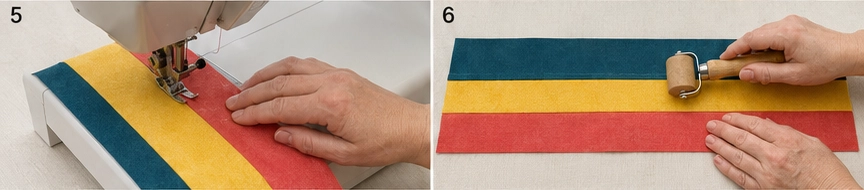

Step 4 – Sew the first strip set. Sew the first two strips together along their long edges with a ¼-inch seam. Then add the third strip – but start this second seam from the opposite end of the set. Sewing both long seams in the same direction encourages a strip set to bow into a shallow curve; starting from opposite ends balances the feeding distortion and keeps that to a minimum. Let the machine feed the fabric rather than pulling it through.

Step 5 – Press the set. Press each seam allowance away from the light center strip and toward the darker rail beside it. That keeps a dark seam allowance from sitting behind your lightest fabric, where it can shadow through. Press from the back first, then from the front, without stretching the set.

Step 6 – Check the width. Measure across the pressed set: it should be exactly 6½ inches. If it’s narrower, your seam allowance is too wide – adjust your machine now, before making ten more sets. This one measurement is the accuracy of every block in the quilt.

Step 7 – Make the remaining ten sets. Repeat steps 4 to 6 until you have eleven strip sets, all following the same sequence and all measuring 6½ inches wide.

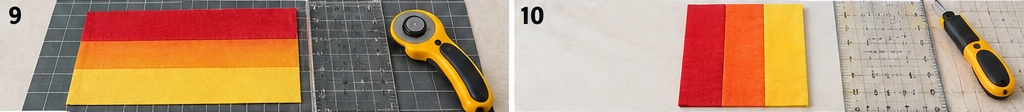

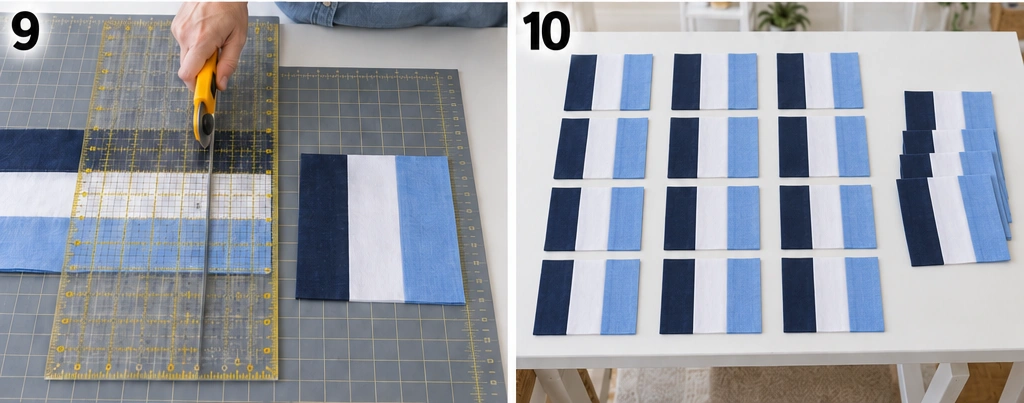

Step 8 – Square one end of a set. Lay a set on the cutting mat and trim a clean edge at one end, cutting at a true right angle to the long seams. Everything you cut from this set is only square if that first cut is.

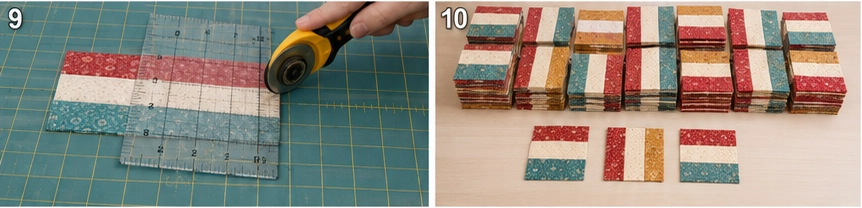

Step 9 – Cut and check the first block. Measure from the squared end and cut one 6½-inch section. Turn it on the mat and check with a ruler that it measures 6½ inches in both directions with four square corners. A bowed set or a slightly angled first cut gives you a parallelogram rather than a square, and it’s far better to find that out on block one.

Step 10 – Cut the remaining blocks. Once the first checks out, cut up to five more from that set, then work through all eleven sets. Most sets give six blocks, for 66 in total; a short or heavily squared set may give only five. Since you need 63, as many as three sets can come up one block short and you’ll still have enough.

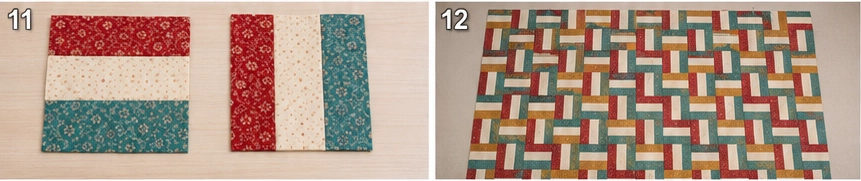

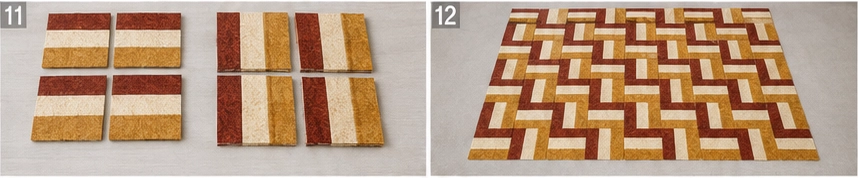

Step 11 – Try the rotation. Take two blocks. Turn one so its strips run horizontally and the other so they run vertically, and set them side by side. That’s the weave – and that’s the entire design decision you’ll be repeating 63 times.

Step 12 – Lay out the quilt. Arrange the blocks 7 across × 9 down, alternating direction like a checkerboard: horizontal, vertical, horizontal, vertical along each row, and starting each new row with the opposite direction to the row above.

There’s a second thing to check that’s easy to miss: a block can be facing the right way and still be upside down. Turned 180 degrees, its strips still run horizontally, but the dark and medium rails have swapped places. Use the same rotation throughout – if the dark rail sits at the top of every horizontal block, it should sit on the same side of every horizontal block. Set out the first four blocks carefully and use them as your reference for the rest.

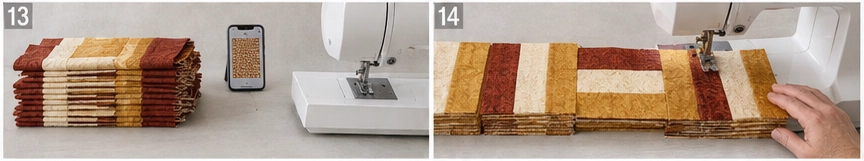

Step 13 – Photograph and label the rows. Take a photo, then place a numbered label beside each row. Gather each row from left to right and pin its label to the first block, keeping every stack facing upward. Blocks are extremely easy to rotate by accident on the way to the machine.

Step 14 – Sew the first row. Sew the seven blocks of row one together with a ¼-inch seam, checking each block’s direction against your photo as you go. The finished row should measure 42½ × 6½ inches.

Step 15 – Press the first row. Press its seams to the right.

Step 16 – Sew and press the remaining rows. Sew each of the other eight rows the same way, checking directions as you go. Press odd-numbered rows to the right and even-numbered rows to the left, so the seams will nest when you join the rows.

Step 17 – Join the rows. Sew the nine rows together in order, pinning at each seam junction where the opposing press directions lock together. Press the top well. It should measure 42½ × 54½ inches.

Step 18 – Prepare the backing. If your backing is unwashed, cut the 3½ yards into two equal lengths of about 63 inches. If you bought 3¾ yards and prewashed it, measure what you actually have after washing and divide that into two equal lengths. Either way, trim the selvages and sew the two pieces together along their long edges. Press the seam open, then trim the panel to at least 48 × 60 inches.

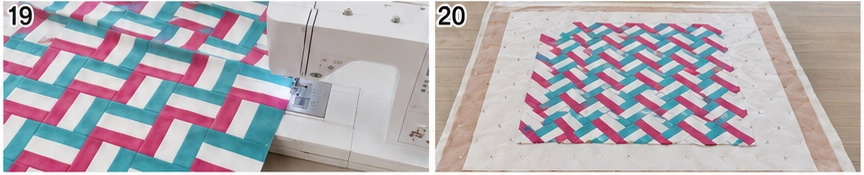

Step 19 – Make the quilt sandwich. Lay the backing wrong side up, center the batting on it, then the quilt top right side up. Smooth everything from the center outward and baste with pins or basting spray.

Step 20 – Quilt it. Simple quilting suits this design perfectly – an all-over diagonal grid, straight lines running the length of the quilt, or stitching in the ditch along the block seams. A walking foot keeps the layers feeding evenly.

Before you decide on spacing, check your batting packaging for its maximum quilting distance – most battings specify how far apart the lines can be before the fibers start to shift and bunch in the wash, and it varies a lot between cotton, wool, and polyester. Quilt at least as closely as it asks, but no denser than you need to, so the quilt stays soft.

Step 21 – Trim and square up. Trim the excess batting and backing level with the edge of the quilt top, squaring the corners. Preserve as much of the top as you can – quilting always draws the layers up a little, so it may finish just under 42½ × 54½ inches, which is normal. Trim only the excess batting and backing – don’t reduce the dimensions of the quilt top unless a small amount of squaring is genuinely needed. That outer ¼ inch is the binding’s seam allowance.

Step 22 – Bind and finish. Join the six 2½-inch binding strips into one long strip, press in half lengthwise, and sew to the front of the quilt with a ¼-inch seam. Fold to the back and stitch down. Before washing, the finished quilt measures about 42 × 54 inches; expect it to come out slightly smaller and softly crinkled after its first wash. Wash gently on cold with a color catcher and tumble dry low.

Assembly at a Glance

Leave the jelly roll strips unwashed; set aside 6 binding strips, take 33 for blocks.
Fix a three-position value sequence (e.g. dark, light, medium).
Sort the 33 strips into eleven groups of three.
Sew strips 1 and 2, then add strip 3 starting from the opposite end (helps prevent bowing).
Press both seam allowances away from the light center rail.
Check the set measures 6½ inches wide.
Make eleven sets the same way.
Square one end of a set.
Cut one block and check it’s 6½ inches square with true corners.
Cut up to 5 more per set → about 66 blocks (63 needed).
Turn two blocks to see the horizontal/vertical weave.
Lay out 7 × 9, alternating direction – and check no block is turned 180 degrees.
Photograph and label the nine rows.
Sew row 1 → 42½ × 6½ in.
Press row 1 seams right.
Sew all nine rows; press odd rows right, even rows left.
Join the rows, nesting seams → 42½ × 54½ top.
Seam the backing along its long edges; trim to 48 × 60.
Layer and baste.
Quilt simply and lightly.
Trim batting and backing level with the top.
Bind with six strips → about 42 × 54 inches.

Beginner Tips for Success

Check your first strip set at 6½ inches before making ten more – it’s the whole quilt’s accuracy in one measurement.
Include one clearly light strip in every block; that’s what makes the weave visible.
Keep the same value order in all eleven sets. The prints can vary, the order can’t.
Square one end of each set before cutting blocks.
Cut and check the first block in both directions before cutting the remaining blocks.
Photograph and label the rows before carrying blocks to the machine.
Press odd rows right and even rows left so the seams nest at every junction.
Watch for blocks turned 180 degrees – the direction can look right while the rails have reversed.
Check your batting’s maximum quilting distance before choosing how far apart to stitch.
Don’t prewash the strips; keep the whole quilt top in the same condition.

Scaling It to Other Sizes

Because every block finishes at 6 inches, resizing is simple arithmetic – add or remove blocks:

Baby quilt: 6 across × 7 down = 36 × 42 inches (42 blocks, 7 strip sets)
Lap quilt (as written): 7 × 9 = 42 × 54 inches (63 blocks, 11 sets)
Twin: 10 × 14 = 60 × 84 inches (140 blocks, 24 sets)
Queen: 14 × 16 = 84 × 96 inches (224 blocks, 38 sets)

Each strip set normally gives six blocks. Divide the number of blocks you need by six and round up to the next whole number for the number of strip sets, then multiply that by three for the strips needed in the quilt top. Work out binding separately.

Styling It & Gift Ideas

A rail fence quilt has a warm, woven, slightly homespun look that suits almost any room – folded over the back of a sofa, spread on a chair, or laid across the end of a bed. The texture reads as classic rather than trend-driven, so it sits happily alongside whatever else is in the room.

Because it’s quick and genuinely forgiving, it’s an excellent gift:

A first quilt to make with someone learning to sew, since success is close to guaranteed
A baby quilt, scaled down to 6 × 7 blocks
Several gifts at once – strip-piecing makes it easy to batch quilts for teachers, neighbors, or cousins
A graduation or new-home gift in the recipient’s favorite colors

If you’re teaching someone to quilt, this is the pattern to teach them on. Nothing in it punishes a slightly wobbly seam, and the finished result looks genuinely impressive.

Final Thoughts

A classic three-strip rail fence is the friendliest quilt there is. Three strips make a block, sixty-three blocks make a quilt, and the woven basket-weave pattern appears from nothing more than turning every other block a quarter turn. Keep one light strip in every set, check that first set at 6½ inches, and photograph your layout before you sew – do those three things and you’ll finish with a warm, handsome quilt and no bias, no points, and no stress along the way.

Other Design Inspirations – Digitally Modified Images. Texture and color may vary from the actual product.

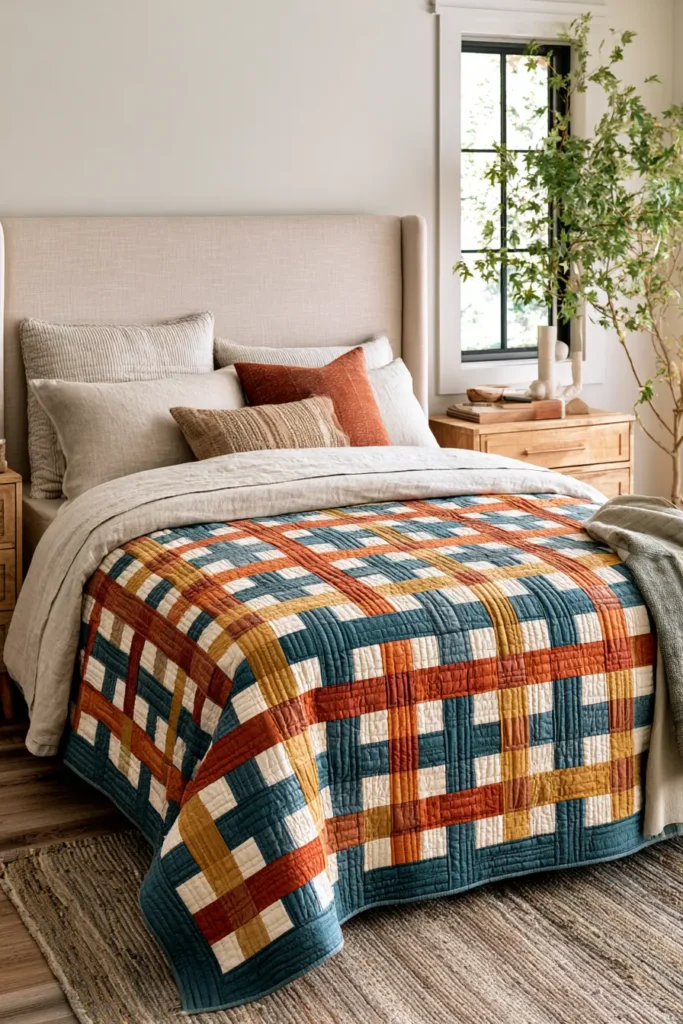

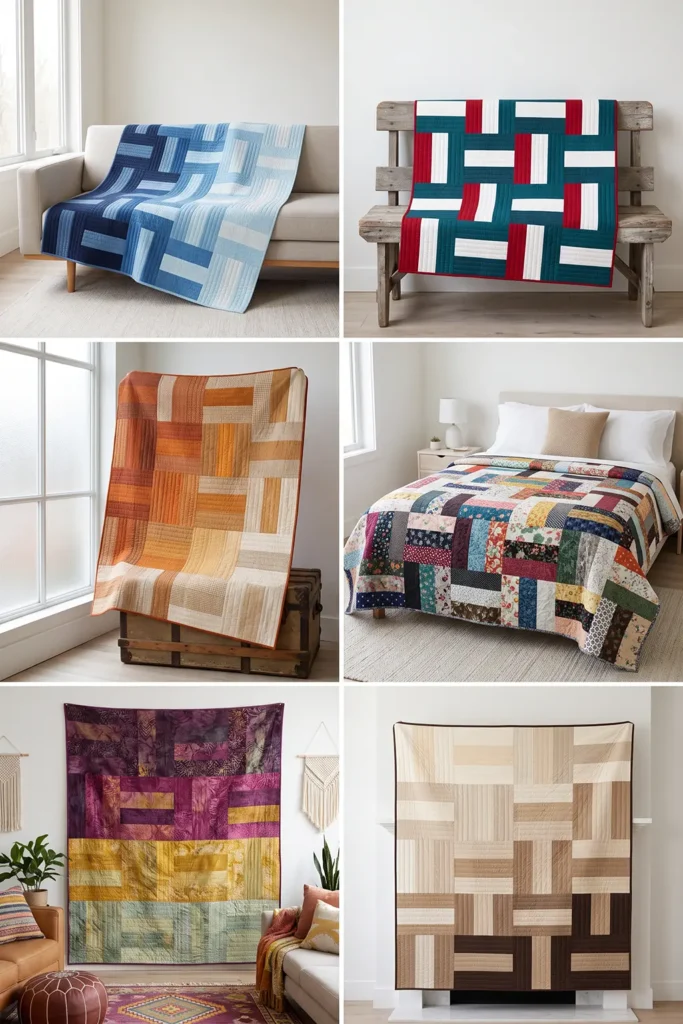

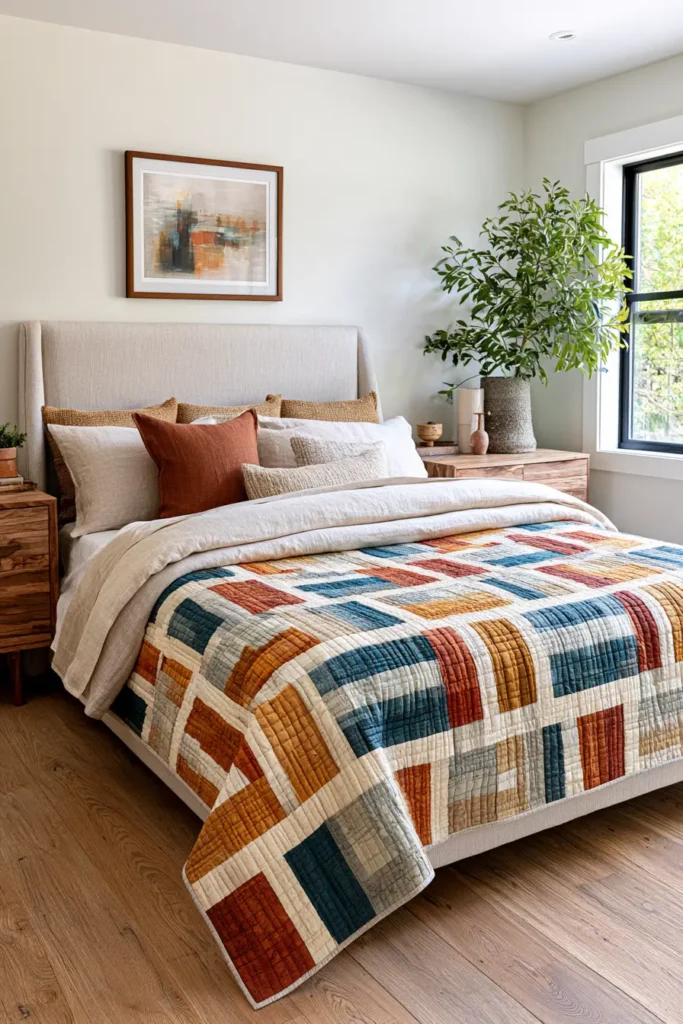

2. Four-Strip Rail Fence Quilt for a Bolder Woven Look

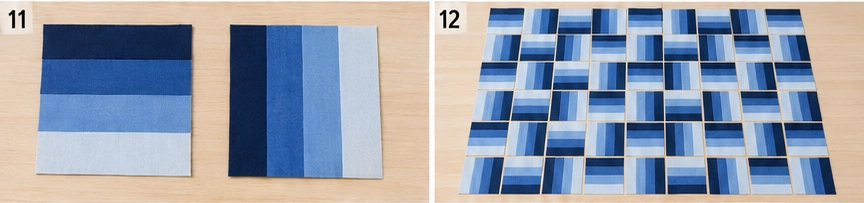

Adding one more strip to the rail fence block changes it more than you’d expect. Four strips instead of three gives you an 8-inch finished block rather than a 6-inch one, so the woven bars are wider, the pattern reads from further away, and the whole quilt has a bolder, more graphic presence. It also comes together faster – bigger blocks cover more ground, so a throw needs 35 blocks instead of 63.

There’s a second, subtler advantage, and it’s the reason many quilters prefer four rails once they’ve made a few. An even number of strips means the block has no single center rail – and it gives you an extra value step, which allows a smoother shading effect than three rails can produce.

What Four Rails Let You Do

With three strips, there’s a definite center rail. You can arrange the values symmetrically – dark, light, dark – so the eye reads a bar with a highlight down the middle, or run a simple three-step gradient of dark, medium, light.

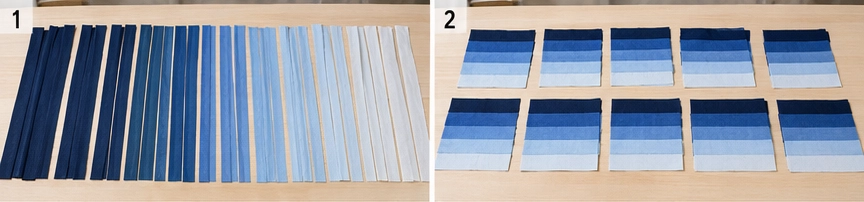

With four, there’s no middle rail at all, and you gain an extra value step. A four-step gradient – dark, medium-dark, medium-light, light – shades more smoothly than a three-step one, so each woven bar appears to grade from one edge to the other, as though it has depth and is catching the light along one side. Alternate those blocks in the usual rotation and the whole quilt takes on a subtle three-dimensional quality, like real timber rails with a shadow along one edge.

You don’t have to use a gradient. Four rails also work beautifully as dark, light, dark, light, which gives a crisper, more graphic checkerboard weave. A three-strip block can be graded too, but the extra step here makes the shading noticeably smoother, and it’s worth trying at least once.

Design Inspirations – Digitally Modified Images. Texture and color may vary from the actual product.

Why Rail Counts Vary

Rail fence blocks are made with three, four, five, and sometimes more rails, and in scrap quilting the count is often influenced simply by the strips to hand. The effect of the choice is real, though: when the strip width stays the same, more rails mean a wider block and a bolder, chunkier weave, while fewer rails give a finer, busier one. It’s the simplest way to change the scale of a quilt without changing anything about how it’s sewn – which is a genuinely useful thing to know when you’re sizing a design to a bed rather than a sofa.
